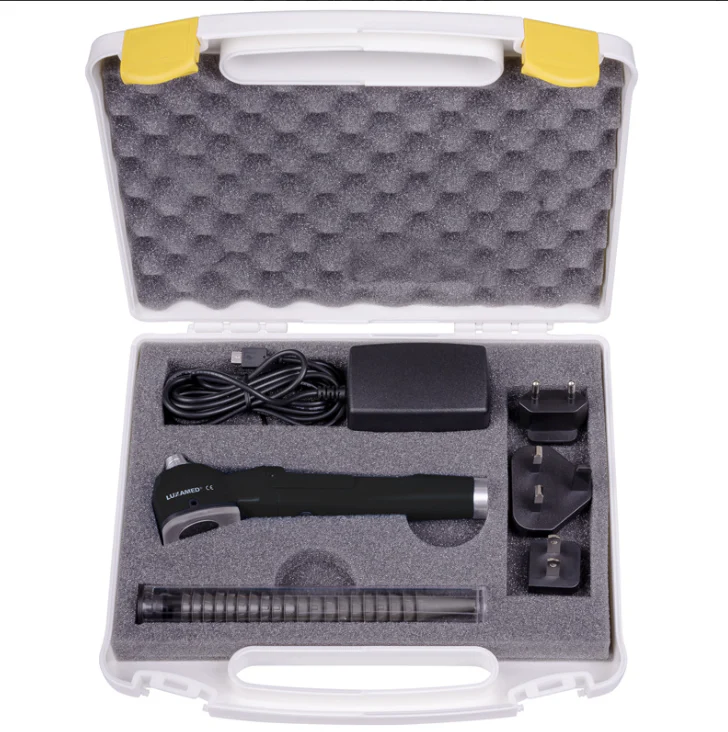

Consisting of the Otoscope Auris LED 3.7 V and Ophthalmoscope Oculus 3.7 V

Otoscope Auris LED 3.7 V:

• innovative otoscope in pocket size
• illumination: LED-Ring with 6 LEDs (concentric), no fibre optic, field of vision is not restricted
• Protected by utility patent DE202013104278U1
• maintenance-free, because no lamp replacement necessary
• can be dimmed
• automatic switchoff after 3 minutes
• life expectancy of LEDs: approx. 100.000 hours by constant current drive
• intensity of illumination: approx. 10.000 Lux
• colour temperature: approx. 4.200 K
• optimized design of head
• pivoting 3-fold magnifying glass with locking function
• insuflation port for pneumatic test
• two-component handle (aluminium/fibre-glass reinforced)
• electronic ON/OFF push-button switch

Ophthalmoscope Oculus 3.7 V:

• direct ophthalmoscope in pocket size
• correction values: + 20 bis - 20 D (± 1 2 3 4 6 8 10 15 20 D)
• 5 different apertures: Fixation cross, large circle, small circle, semicircle, green filter
• illumination: LED illumination
• can be dimmed for an individual glare-free brightness
• automatic switchoff after 3 minutes
• life expectancy of LEDs: approx. 50.000 hours by constant current drive
• colour temperature: approx. 4.200 K
• optimized design of head
• two-component handle (aluminium / fibre-glass reinforced), also combinable with LuxaScope LED otoscope- and dermatoscope head
• electronic ON/OFF push-button switch
